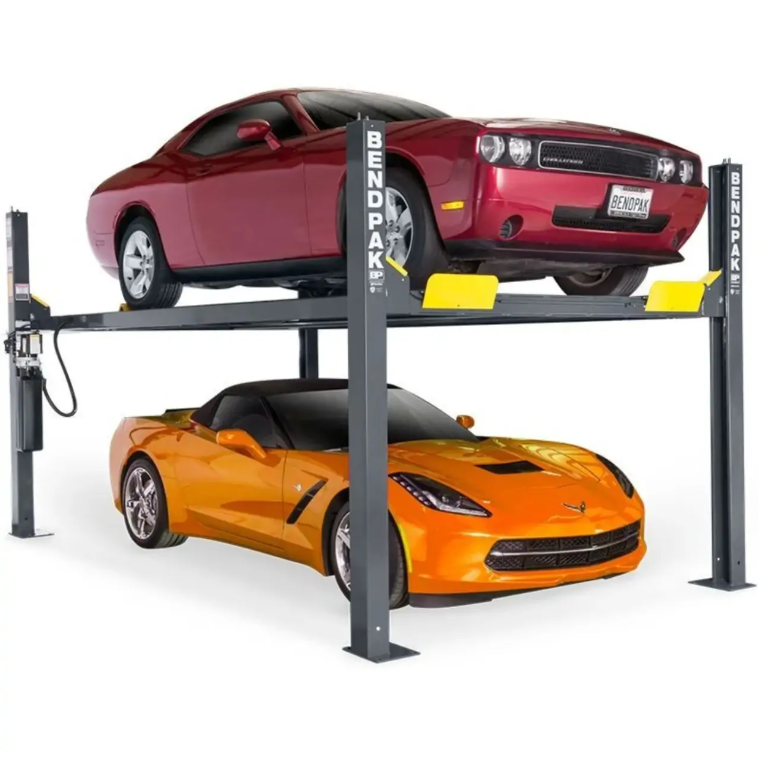

Bendpak HD-9 9,000-Lb. Capacity Standard Width 4 Post Car Lift

BendPak HD-9 9,000-Lb. Capacity Standard Width 4 Post Car Lift

The BendPak HD-9 9,000-Lb. Capacity Standard Width 4 Post Car Lift is the ideal solution for vehicle storage and servicing in home garages and professional workshops. With a robust design, premium safety features, and customizable accessories, this lift offers unmatched durability, efficiency, and convenience.

Key Features

High Capacity and Certified Safety

• Maximum Lifting Capacity: 9,000 lbs.
• CE Approved and Certified: Meets European Standard EN-1493.
• Aircraft-Quality Cables: Each cable supports up to 14,400 lbs.
• Multi-Position Safety Locks: Automatically engage for added security.

Flexible Design for All Vehicles

• Accommodates narrow and standard vehicles on its durable runways.
• Features longer approach ramps for low-clearance vehicles.
• Adjustable lock ladders for customizable lift positions.

Advanced Safety Mechanisms

• Slack-Cable Detection System: Shuts down operation if slack is detected.

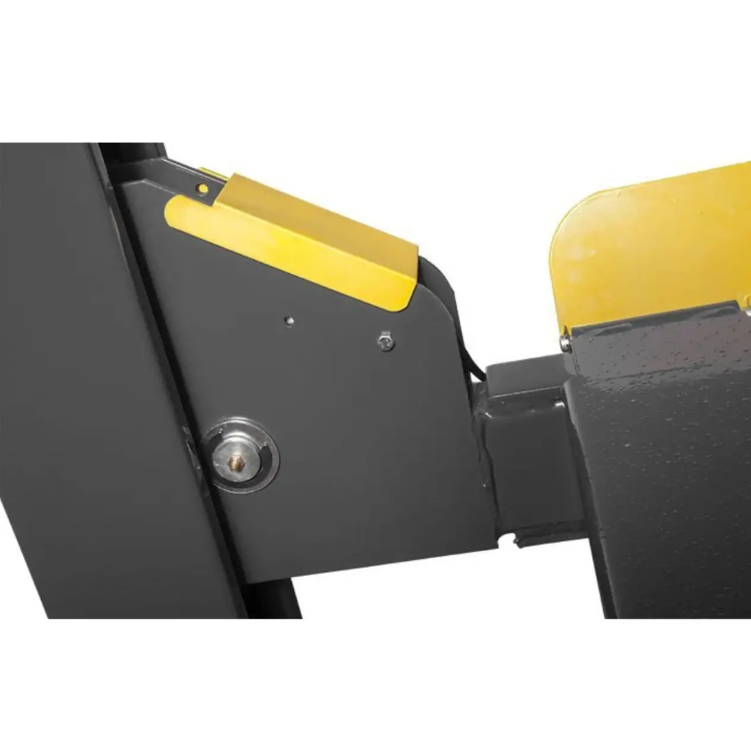

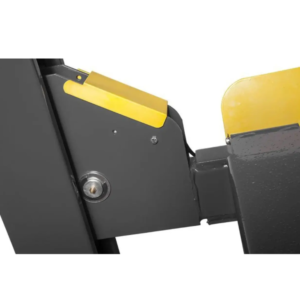

• Spring-Loaded Safety Locks: Engage continuously during lifting.
• Push-Button Pneumatic Safety Release: Ensures smooth operation.

Customizable Options

• Optional Drip Trays for fluid management.
• Optional Solid Deck to increase storage capacity.
• Optional 4,500-lb. Air/Hydraulic Rolling Jacks (Model RJ-45).

Specifications

• Model: HD-9
• Lifting Capacity: 9,000 lbs. / 4,082 kg
• Runway Width: 19 in. / 482 mm
• Maximum Rise: 70.25 in. / 1,782 mm
• Overall Width: 111.75 in. / 2,840.5 mm
• Overall Length: 200.5 in. / 5,093 mm
• Height of Post: 88 in. / 2,232 mm
• Drive-Thru Clearance: 86.65 in. / 2,200 mm
• Motor: 220 VAC, 60 Hz, 1 Ph
• Lifting Time: 45-50 seconds
• Safety Lock Positions: 14 spaced every 4 in. / 102 mm

Why Choose the BendPak HD-9 4 Post Car Lift?

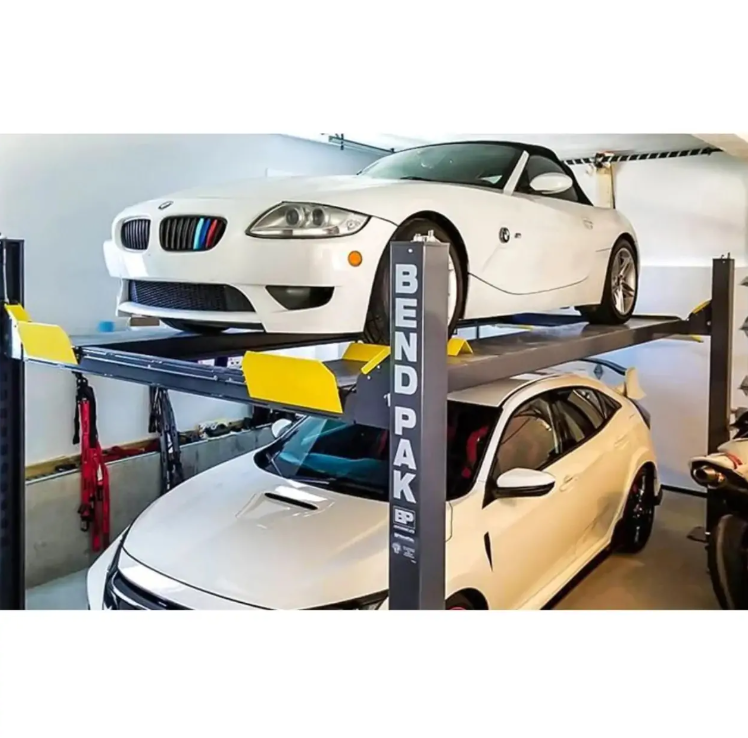

• Space-Saving Design: Fits into standard garages and tight workshop spaces.

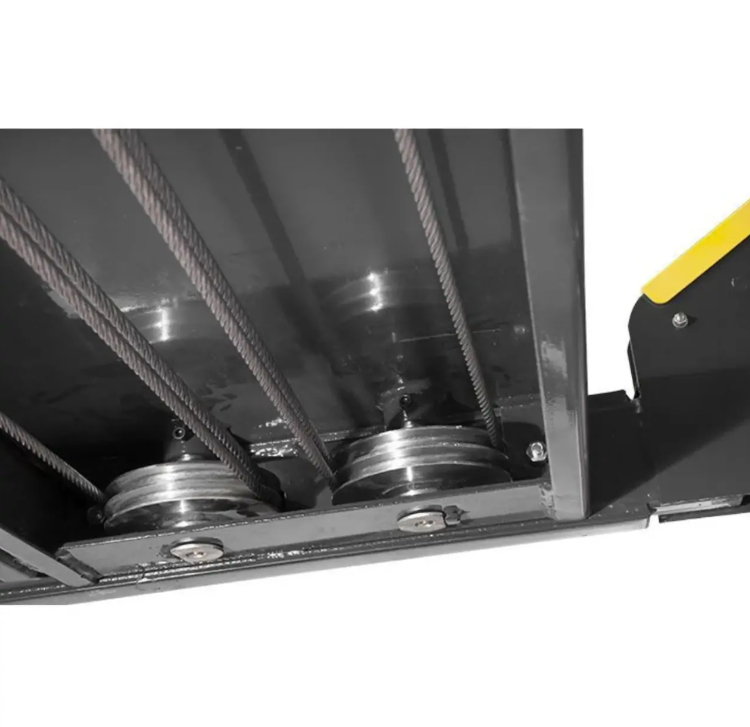

• High-Quality Construction: Aircraft-quality cables and self-lubricating rollers ensure long-term reliability.
• Versatile Use: Perfect for vehicle storage, maintenance, and repairs.
• Customizable Setup: Optional accessories for increased functionality.
• Safety Assured: Multi-layer safety mechanisms for secure lifting and lowering.

Package Includes

• 1 x BendPak HD-9 4 Post Car Lift
• Adjustable Lock Ladders
• Approach Ramps
• Safety Locks and Slack-Cable Detection System
• Optional Accessories (Drip Trays, Solid Deck, Rolling Jacks)

Invest in the BendPak HD-9 9,000-Lb. 4 Post Car Lift and experience superior performance, safety, and flexibility in your garage or workshop.
